Description
Product Specifications
| Working load (Lashing capacity): | 5000kg |
|---|---|
| Webbing breaking strength: | 7500kg |
| Webbing Width: | 50mm wide |
| Material: | 0.35m Heavy duty webbing |
| Buckle Type: | Ratchet |
| Hook Type: | Double J Hooks |
| Standard: | BS EN 12195-2:2001 |

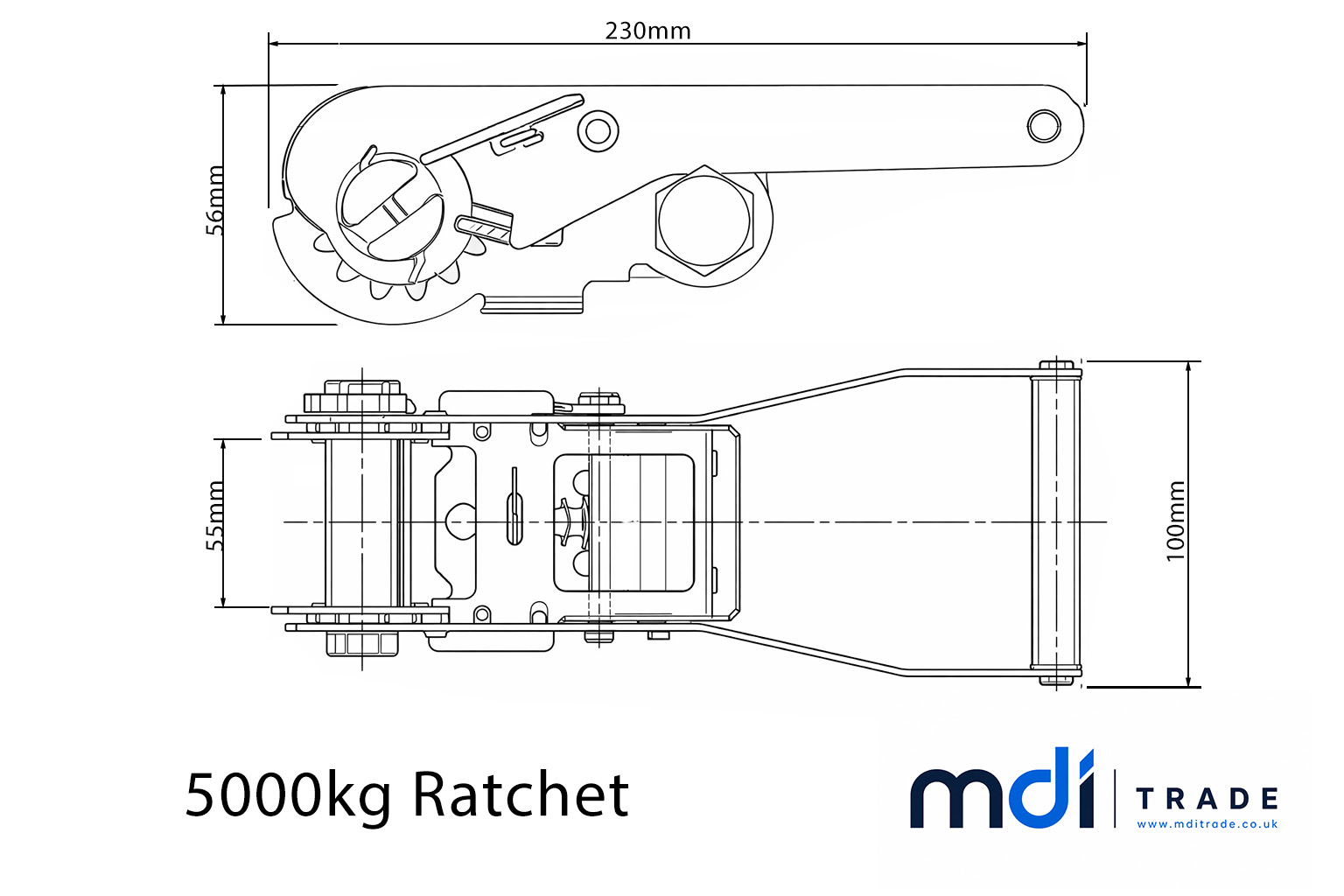

5000kg 50mm Ratchet End Only with Double J Hook (7500kg Webbing) – Heavy-Duty Replacement Ratchet Assembly
Need a high-strength replacement ratchet unit for your existing strap system?
This 5000kg 50mm ratchet end only with double J hook is designed for strength, durability, and professional performance, making it ideal for transport, logistics, and heavy-duty applications.
Manufactured with robust 50mm polyester webbing and a 7500kg webbing breaking strength, this heavy-duty ratchet end assembly delivers reliable performance in demanding environments.
Supplied as a ratchet end only (short end assembly), it includes approximately 350mm of webbing between the ratchet and hook—perfect for replacing worn components or rebuilding existing ratchet strap systems.
Fitted with a strong double J hook, it provides secure anchoring to suitable fixing points, while the heavy-duty ratchet mechanism ensures smooth, controlled tensioning and a tight, dependable hold.
Key Features of Our 5000kg Ratchet End Assembly
- 5000kg Lashing Capacity (Working Load)
Designed for ultra heavy-duty load securing applications - 7500kg Webbing Breaking Strength
High-performance webbing for maximum durability - 50mm Heavy-Duty Polyester Webbing
Strong, wear-resistant, and built for demanding environments - Ratchet End Only (Short End Assembly)
Ideal for replacements or rebuilding existing strap systems - 350mm Webbing Length
Provides optimal spacing between ratchet and hook - Double J Hook End Fitting
Secure and reliable attachment to anchor points - Heavy-Duty Ratchet Mechanism
Smooth operation with controlled, high-tension securing - Designed for Professional Use
Suitable for transport, logistics, and industrial applications - Individually Labelled Straps
Unique serial number on each label for full traceability - BS EN12195-2:2001 Compliant
Manufactured to meet recognised load restraint standards
Ideal Uses for a 5000kg Ratchet End Only
This 5000kg ratchet end assembly is perfect for:
- Replacing damaged or worn ratchet units
- Repairing existing ratchet strap systems
- Custom strap setups and configurations
- Heavy-duty transport and logistics operations
- Industrial and commercial load restraint
Perfect when you need a reliable replacement ratchet unit for heavy-duty load securing.
When to Use a Ratchet End Only Assembly
A ratchet end only strap is the best choice when:
- You need to replace a worn or damaged ratchet mechanism
- You are repairing or rebuilding a strap system
- You require a compatible short end for an existing long strap
For complete strap systems, consider using
full ratchet strap assemblies instead.
Frequently Asked Questions – Ratchet End Assemblies
What is a ratchet end only?
A ratchet end only is the short section of a ratchet strap that includes the ratchet mechanism and hook, designed to be paired with a separate long strap.
Can this be used with any strap?
Yes, provided the strap is compatible with 50mm webbing and meets the required load rating.
What does 7500kg webbing strength mean?
The 7500kg webbing breaking strength refers to the maximum load the webbing can withstand before failure, providing additional safety margin.
Is this suitable for heavy-duty use?
Yes. This 5000kg ratchet end assembly is designed for demanding professional and industrial applications.
